Brainwave Watch Technical Documentation

Created by John Hookway, Modified on Thu, 16 Nov, 2023 at 3:31 AM by John Hookway

Startup

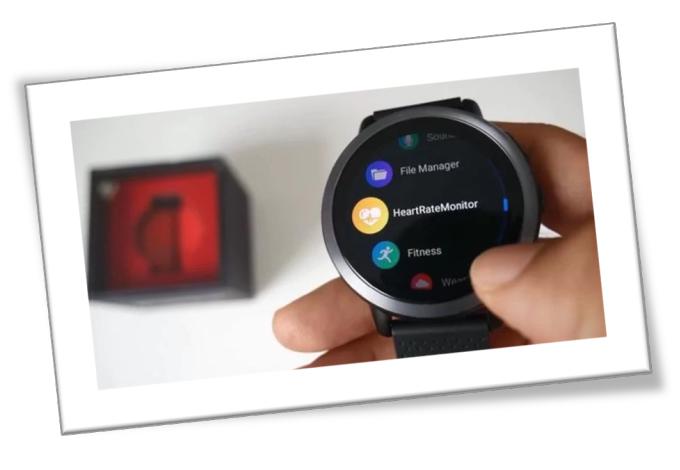

Swipe left to get to the Selector Then scroll to the Settings

1. Timeout

Settings/display/sleep and adjust the timeout to 2 minutes (otherwise it will go to sleep as you adjust settings and be irritating).

2. Connect to wifi

Settings/connect/wifi

Switch on the toggle at the top and select your wifi network

TIP: Create a simple wifi password to make typing the password easy on the small watch face.

3. Set the time

Settings/Date&Time/

Toggle on "Automatic time zone"

Basic Navigation

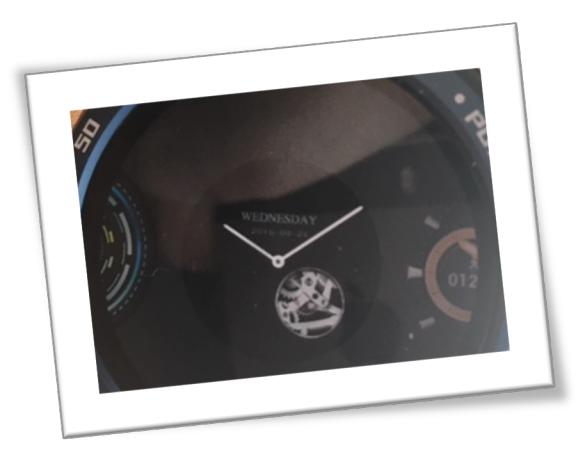

1. Press down on the watch face to see a range of watch face options, and select one

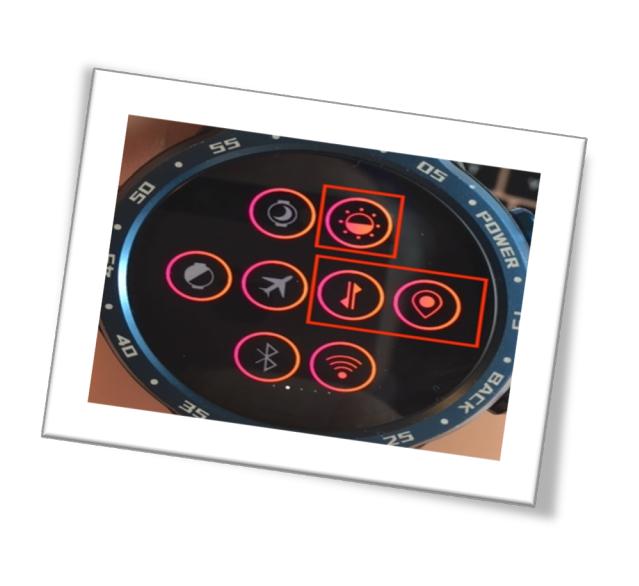

Swipe down to access the control panel and then swipe left to see the toggles

The Toggles shown are the ones to have on for optimal use and battery life.

SIM CARD

It may take up to 2 hours for a device to apply the new internet and APN settings of the SIM card
When installing the SIM, please ensure the SIM card is locked into place properly. The little sim flap door does not just lay flat you need to close it and then slide it locks and make the connection
If in doubt, test the SIM card in a phone
After installing the SIM restart the device

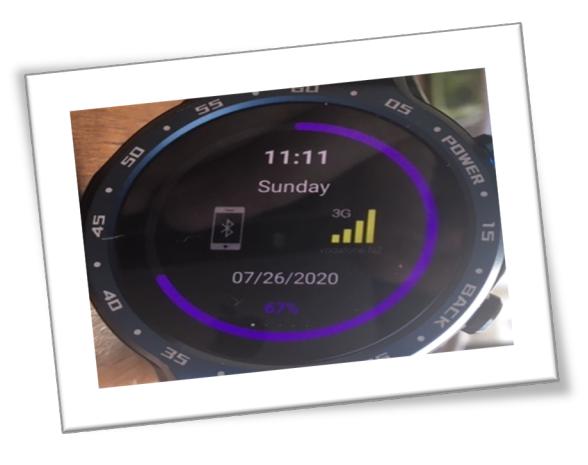

check that there is a reception on the control panel
and that the toggles are on - as shown in the images above. Turn on flight mode on and off
Go to the Browser on the menu selector and see if Google can be brought up.

It may be necessary to install a new APN setting to get the SIM card to work (see the APN chapter of this guide for further information).

Brainwave Watch Settings

TURN wifi ON during Sleep

Please make sure you have the following settings turned ON

Navigate to Menu > Settings > Connect > WiFi >
Select Options, Advanced

"Keep WiFi on during sleep" - Set Always

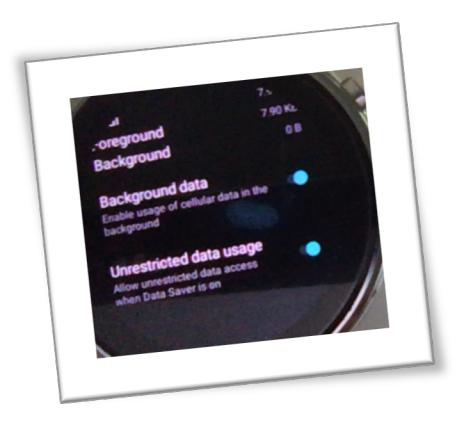

Turn on Background data ON & Unrestricted data usage ON (like below image)

Navigate to Menu > Settings > Uninstall applications > Saviour Watch > Data Usage toggle the Background data ON and unrestricted data usage ON

High accuracy GPS

Settings > Connect > Gps.

flick on the green toggle mode

Enable GPS and select high accuracy in mode

Disable intelligent power

Settings/power saving/disable intelligent power

The data saver is turned off

Data Saver is set in Settings> More> Data Saver.

Make sure that the data saver is turned off on the watches since it throttles background service when the watch is idle.

System optimization

System optimization/ clean task

Toggle this on and click on the text it goes to a new screen showing GuardSignal Toggle this off

Go out to the preceding screen

Toggle this off

APN Settings

Network providers have APN settings that enable to their SIM card to work on the watch The watch might work automatically when the SIM is installed. Otherwise, APN settings need to be entered into the watch

Please ask your provider for their APN settings (their APN settings will often be available on the internet). Sometimes it is possible to enter the APN settings simply by sending a text to the watch.

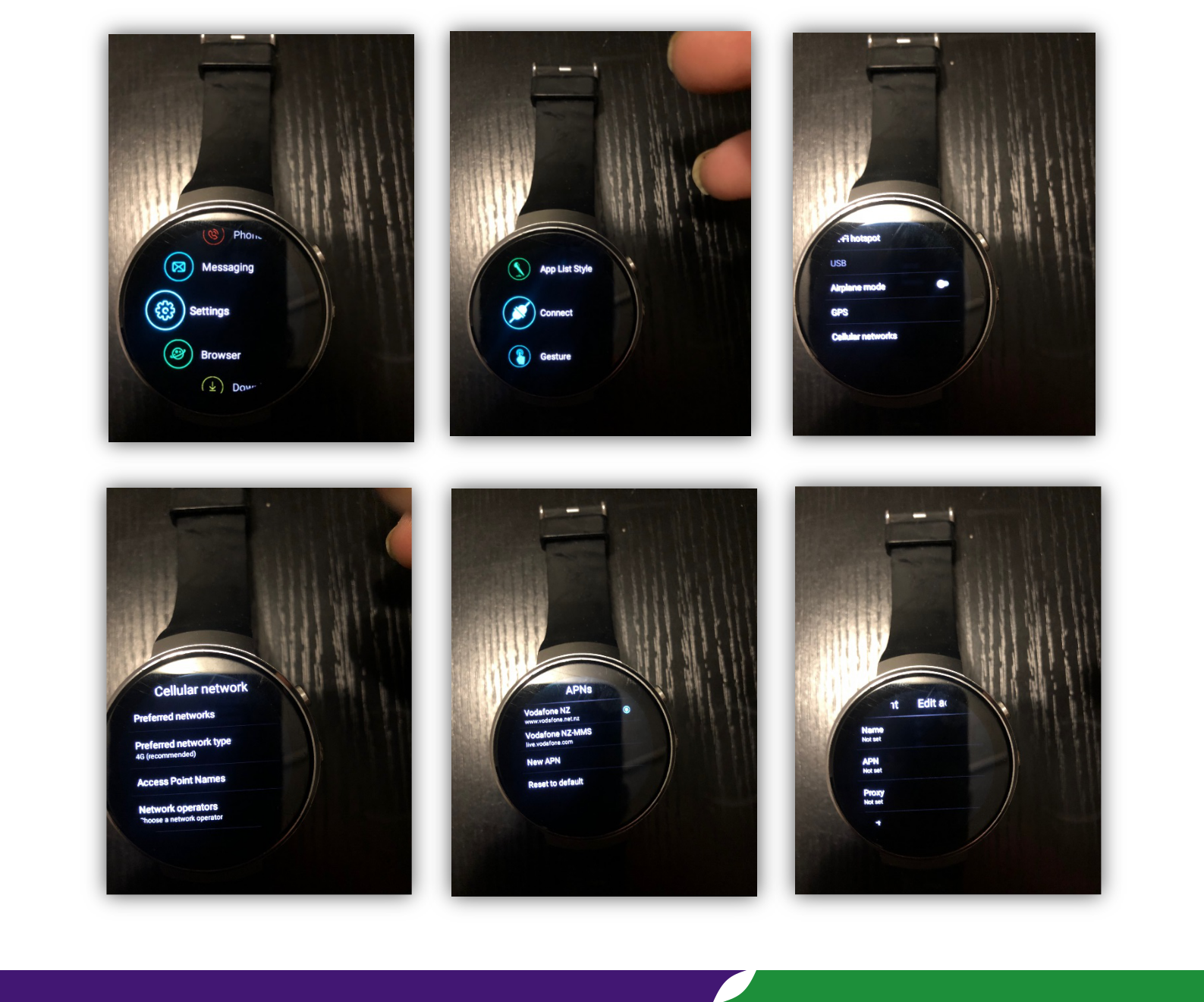

To enter the settings, please follow the steps below and SAVE them Setting>>connect>>cellular networks>>access point names>>new APN>>add details>>save

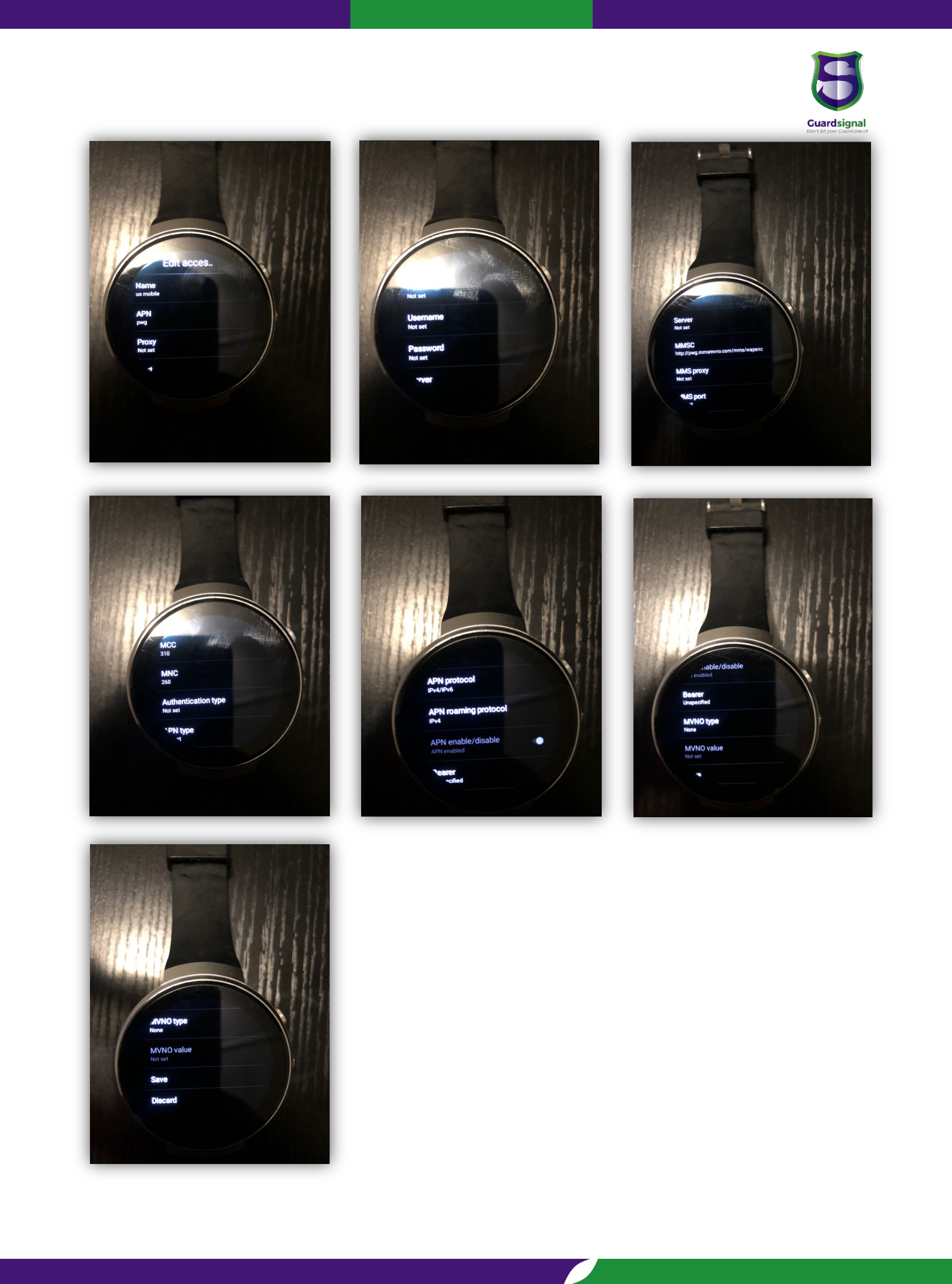

And enter the details provided by the network provider and save the APN.

Go back to the access point names page and select the Newly created APN!
